BioHorizons Camlog Online Shop | CONELOG® CAM Titanium blank, type AG, Ø 12, implant Ø 3.3, L 27 (2 units)

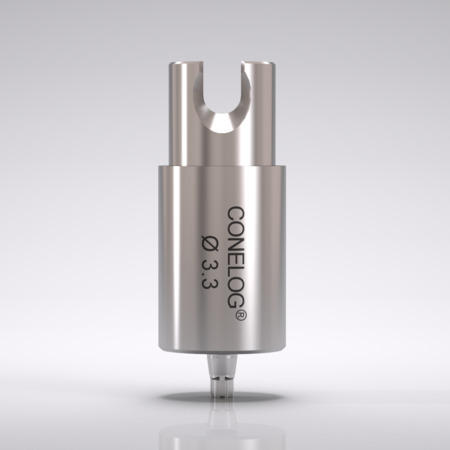

CONELOG® CAM Titanium blank, type AG, Ø 12, implant Ø 3.3, L 27 (2 units)

C2471.3327

Quantity

Any questions regarding the product?

Service hours
Monday to Friday 8:30 a.m. - 5:00 p.m.

Phone: +31 (0)348 820 010
E-Mail: bestelling@camlog.nl

CONELOG® CAM Titanium blank, type AG, for "Ceramill®" CAD/CAM system of Amann Girrbach®, material: titanium alloy

Material for catalog	titanium alloy
Abutment system	CAM blanks
tightening torque	20 Ncm
Platform Switching	No
Thread	M1.8
PF diameter	3.3
Diameter	12.0
Connection type	conical
Color coding	gray
Directly screw-retained bridges	No
Fixation of the tertiary care	cemented
Impression level	implant level
Sterility	non-sterile
Frequency of use	single-use
E-labeling	Yes

Link to instructions for use

https://ifu.camlog.com/products?reference=C2471.3327

Notice:

The CAM titanium blanks, type AG were jointly developed by CAMLOG Biotechnologies GmbH and Amann Girrbach AG. They have the Amann Girrbach® patented connection geometry for the blank holder and are compatible with the Ceramill® CAD/CAM system. The blanks enable laboratories to manufacture customised one-piece abutments and healing caps made of titanium alloy on their own milling machines. The corresponding CONELOG® Abutment screws (article code: C4005.1601 for Ø 3.3 / 3.8 / 4.3; C4005.2001 for Ø 5.0) must be ordered separately. The associated CAD libraries are available as downloads both from the Media Center on the Camlog® website and from Amann Girrbach® via the AG.live portal or via the Software Manager. This item can also be used for BioHorizons Conical Dental Implants with a grey Type N (Narrow) implant connection.
