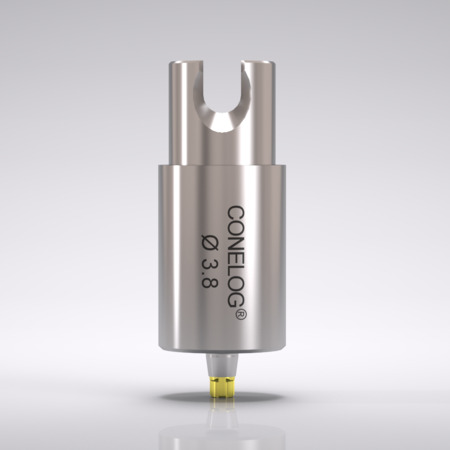

CONELOG® CAM Titanium blank, type AG, Ø 12, implant Ø 3.8, L 27 (2 units)
C2471.3827
C2471.3827
CONELOG® CAM Titanium blank, type AG, for "Ceramill®" CAD/CAM system of Amann Girrbach®, material: titanium alloy
| CAM blanks | |
| tightening torque | 20 Ncm |
| Platform Switching | No |
| Thread | M1.8 |
| PF diameter | 3.8 |
| Diameter | 12.0 |
| Connection type | conical |
| Color coding | yellow |
| Directly screw-retained bridges | No |
| Fixation of the tertiary care | cemented |
| Impression level | implant level |
| Sterility | non-sterile |
| Frequency of use | single-use |
Note:
The CAM titanium blanks, type AG were jointly developed by CAMLOG Biotechnologies GmbH and Amann Girrbach AG. They have the Amann Girrbach® patented connection geometry for the blank holder and are compatible with the Ceramill® CAD/CAM system. The blanks enable laboratories to manufacture customised one-piece abutments and healing caps made of titanium alloy on their own milling machines. The corresponding CONELOG® Abutment screws (article code: C4005.1601 for Ø 3.3 / 3.8 / 4.3; C4005.2001 for Ø 5.0) must be ordered separately. The associated CAD libraries are available as downloads both from the Media Center on the Camlog® website and from Amann Girrbach® via the AG.live portal or via the Software Manager. This item can also be used for BioHorizons Conical Dental Implants with a yellow Type R (Regular) implant connection.
The CAM titanium blanks, type AG were jointly developed by CAMLOG Biotechnologies GmbH and Amann Girrbach AG. They have the Amann Girrbach® patented connection geometry for the blank holder and are compatible with the Ceramill® CAD/CAM system. The blanks enable laboratories to manufacture customised one-piece abutments and healing caps made of titanium alloy on their own milling machines. The corresponding CONELOG® Abutment screws (article code: C4005.1601 for Ø 3.3 / 3.8 / 4.3; C4005.2001 for Ø 5.0) must be ordered separately. The associated CAD libraries are available as downloads both from the Media Center on the Camlog® website and from Amann Girrbach® via the AG.live portal or via the Software Manager. This item can also be used for BioHorizons Conical Dental Implants with a yellow Type R (Regular) implant connection.
