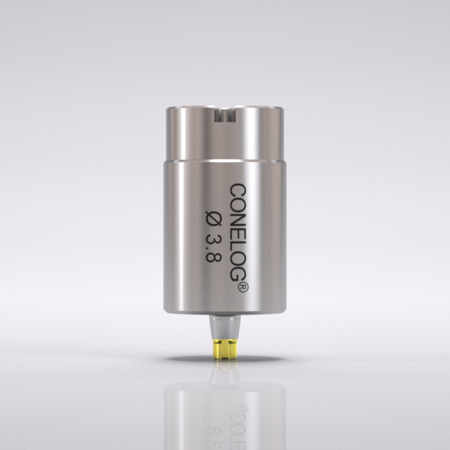

CONELOG® CAM titanium blank, type ME, Ø 12, implant Ø 3.8, L 20 (10 units)
C2442.3820
Quantity
CONELOG® CAM titanium blank, type ME, material: titanium alloy
Abutment system CAM blanks
Material for catalog titanium alloy
tightening torque 20 Ncm
Platform Switching No
Thread M1.8
PF diameter 3.8
Diameter 12.0
Connection type conical
Color coding yellow
Directly screw-retained bridges No
Fixation of the tertiary care cemented
Impression level implant level
Sterility non-sterile
Frequency of use single-use
E-labeling Yes
Link to instructions for use

https://ifu.camlog.com/products?reference=C2442.3820

Notice:


The blanks enable laboratories to manufacture customised one-piece abutments and healing caps made of titanium alloy on their own milling machines. For the milling process, the CAM titanium blank, type ME is fixated with the front-facing groove of its cylindrical section via a milling holder for PreFace® abutments from Medentika®. These holders are available for selected machines from the respective machine manufacturer. The CAM titanium blanks require product-specific CAM libraries. If you have any questions about compatibility, please contact DEDICAM® Technical Service at +49 7044 9445-800 or dedicam.cad@camlog.com. The corresponding CONELOG® Abutment screws (article code: C4005.1601 for Ø 3.3 / 3.8 / 4.3; C4005.2001 for Ø 5.0) must be ordered separately. The associated CAD libraries are available as downloads from the Media Center on the Camlog® website. This item can also be used for BioHorizons Conical Dental Implants with a yellow Type R (Regular) implant connection.
