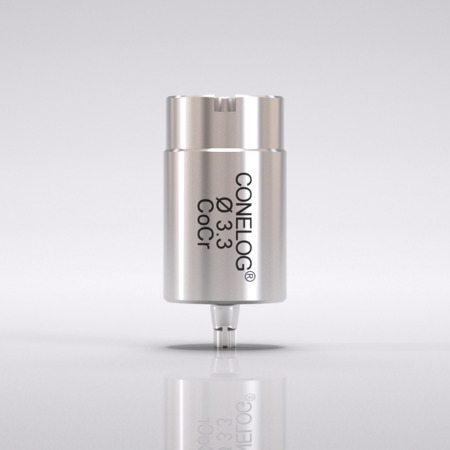

CONELOG® CAM CoCr blank, type ME, Ø 12, implant Ø 3.3, L 20 (2 units)
C2461.3320
C2461.3320
CONELOG® CAM CoCr blank, type ME, material: CoCr alloy
| CAM blanks | |
| tightening torque | 20 Ncm |
| Platform Switching | No |
| Thread | M1.8 |
| PF diameter | 3.3 |
| Diameter | 12.0 |
| Connection type | conical |
| Directly screw-retained bridges | No |
| Fixation of the tertiary care | cemented |
| Impression level | implant level |
| Sterility | non-sterile |
| Frequency of use | single-use |
Note:
The blanks enable laboratories to manufacture customised one-piece abutments made of CoCr alloy on their own milling machines. For the milling process, the CAM CoCr blank, type ME is fixated with the front-facing groove of its cylindrical section via a milling holder for PreFace® abutments from Medentika®. These holders are available for selected machines from the respective machine manufacturer. The CAM CoCr blanks require product-specific CAM libraries. If you have any questions about compatibility, please contact DEDICAM® Technical Service at +49 7044 9445-800 or dedicam.cad@camlog.com. The corresponding CONELOG® Abutment screws (article code: C4005.1601 for Ø 3.3 / 3.8 / 4.3; C4005.2001 for Ø 5.0) must be ordered separately. The associated CAD libraries are available as downloads from the Media Center on the Camlog® website. This item can also be used for BioHorizons Conical Dental Implants with a grey Type N (Narrow) implant connection.
The blanks enable laboratories to manufacture customised one-piece abutments made of CoCr alloy on their own milling machines. For the milling process, the CAM CoCr blank, type ME is fixated with the front-facing groove of its cylindrical section via a milling holder for PreFace® abutments from Medentika®. These holders are available for selected machines from the respective machine manufacturer. The CAM CoCr blanks require product-specific CAM libraries. If you have any questions about compatibility, please contact DEDICAM® Technical Service at +49 7044 9445-800 or dedicam.cad@camlog.com. The corresponding CONELOG® Abutment screws (article code: C4005.1601 for Ø 3.3 / 3.8 / 4.3; C4005.2001 for Ø 5.0) must be ordered separately. The associated CAD libraries are available as downloads from the Media Center on the Camlog® website. This item can also be used for BioHorizons Conical Dental Implants with a grey Type N (Narrow) implant connection.
